sandbox/ghigo/src/test-stokes/sphere-towards-wall.c

    Sphere moving infinitely slowly towards to a plane surface in a Stokes flow

    We compute here the hydrodynamic normal force F_{\Gamma,x} acting on a sphere of radius r (diameter d) approaching the plane surface x=-\frac{L_0}{2} + 1.1 d with a velocity \mathbf{u}_{\Gamma} = -u_{\mathrm{ref}} \mathbf{e_x} through a viscous fluid characterized by a density \rho = 1 and a viscosity \nu = 1. We denote \delta the distance between the plane and the bottom of the sphere.

    This problem has been solved analytically in Brenner, 1961 by considering the characteristic time scale t_{\mathrm{ref}} = \frac{\delta}{u_{\mathrm{ref}}} and assuming that the Reynolds number verifies Re = \frac{u_{\mathrm{ref}} r}{\nu} \ll 1 and Re \ll \frac{\delta}{r} to respectively neglect the inertia and unsteady terms in the Navier-Stokes equations. See Coolley et al., 1969 for details. In this case, the normal force acting on the sphere for any value of \delta writes:

    \displaystyle F_{\Gamma,x} = \kappa F_{\mathrm{Stokes}}, where F_{\mathrm{Stokes}} is the well-known Stokes force defined in as: \displaystyle F_{\mathrm{Stokes}} = 6 \pi \mu u_{\mathrm{ref}} r, and \kappa is a correction factor defined in as: \displaystyle \kappa_{\mathrm{Brenner}} = \frac{4}{3} \sinh \alpha \sum_{n=1}^{+\infty} \frac{n\left(n+1\right)}{\left(2n - 1\right)\left(2n + 3\right)} \left( \frac{2\sinh\left(\left(2n + 1\right)\alpha\right) + \left(2n + 1\right)\sinh \left(2\alpha\right)}{4\sinh^2\left(\left(n + \frac{1}{2}\right)\alpha\right) - \left(2n + 1\right)^2\sinh^2 \alpha} - 1\right), where \alpha = \cosh^{-1} \left( 1 + \frac{\delta}{r}\right). In Coolley et al., 1969, the authors have simplified the previous expression by assuming that \delta \ll r and have obtained following expression for the correction factor \kappa: \displaystyle \kappa_{\mathrm{Cooley}} = \frac{r}{\delta} -\frac{1}{5}\log (\frac{\delta}{r}) + 0.97128. Both expressions are equivalent in the limit of \delta \ll r and the authors report in Coolley et al., 1969 a 3\% difference between the two expressions when \delta /r \sim 0.5.

    We solve here the 3D Stokes equations and add the sphere using an embedded boundary on an adaptive grid.

    #include "grid/octree.h"
#include "../myembed.h"
#include "../mycentered.h"
#include "../myperfs.h"
#include "view.h"

    Exact solution

    This table summerizes the results of Brenner, 1961, where the first column is the non-dimensional gap size \delta/r and the second column is the corresponding value of the drag correction factor \kappa (computed using the first 400 terms of the infinite series).

    static double brenner[7][2] = {
  {0.4,   3.73562},
  {0.3,   4.61072},
  {0.2,   6.34089},
  {0.1,   11.4592},
  {0.05,  21.5858},
  {0.025, 41.7176},
  {0.01,  101.896}
};

double drag_correction_Brenner (double g)
{
  double kappa = 1.;
  for (int i = 0; i < 7; i++)
    if (g == brenner[i][0])
      kappa = brenner[i][1];
  return kappa;
}

    The following function defines the drag correction factor from Cooley et al., 1969.

    double drag_correction_Cooley (double g)
{
  return (1./(g) - 1./5.*log((g)) + 0.97128);
}

    Reference solution

    #define d    (1.)  // Diameter, 2*r
#define nu   (1.)  // Viscosity

#if GAP
#define gap  (GAP/1000.) // Dimensionless gap distance delta/r (0.4, 0.3, 0.2, 0.1, 0.05, 0.025 and 0.01)
#else // gap = 0.4
#define gap  (0.4)
#endif // GAP

#define uref (1.)
#define tref (min (sq ((d)/(nu)), (gap)*(d)/2./(uref))) // tref = delta/u

    We also define the shape of the domain.

    To avoid a high concentration of cells near a domain boundary (pathological case for Basilisk) and to increase the accuracy of the boundary treatment, we define the wall towards which the particle is “moving” using embedded boundaries instead of using a boundary of the domain.

    #if DLENGTH
#define h (-((double) (DLENGTH))*(d)/2. + 1.1*(d) + 1.e-8) // Position of the wall
#else // L0 = 256
#define h (-(256.)*(d)/2. + 1.1*(d) + 1.e-8) // Position of the wall
#endif // DLENGTH
#define sphere(x,y,z,diam) (sq ((x)) + sq ((y)) + sq ((z)) - sq ((diam)/2.))
#define wall(x,w) ((x) - (w)) // + over, - under
coord p_p;

void p_shape (scalar c, face vector f, coord p)
{
  vertex scalar phi[];
  foreach_vertex()
    phi[] = intersection (
    			  (sphere ((x - p.x), (y - p.y), (z - p.z), (d))),
    			  (wall ((x), (h)))
    			  );
  boundary ({phi});
  fractions (phi, c, f);
  fractions_cleanup (c, f,
  		     smin = 1.e-14, cmin = 1.e-14);
}

    Setup

    We need a field for viscosity so that the embedded boundary metric can be taken into account.

    face vector muv[];

    We also define a reference velocity field.

    scalar un[];

    Finally, we define the mesh adaptation parameters.

    #define lmem (6) // Initial mesh refinement level to avoid memory overload

#if DLENGTH == 16
#define lmin (5) // Min mesh refinement level (l=7 is 2pt/d for L0=16)
#elif DLENGTH == 32
#define lmin (6) // Min mesh refinement level (l=8 is 2pt/d for L0=32)
#elif DLENGTH == 64
#define lmin (7) // Min mesh refinement level (l=7 is 2pt/d for L0=64)
#elif DLENGTH == 128
#define lmin (8) // Min mesh refinement level (l=8 is 2pt/d for L0=128)
#elif DLENGTH == 256
#define lmin (9) // Min mesh refinement level (l=9 is 2pt/d for L0=256)
#else // L0 = 256
#define lmin (9) // Min mesh refinement level (l=9 is 2pt/d for L0=256)
#endif // DLENGTH

#if LMAX
#define lmax ((int) (LMAX)) // Max mesh refinement level (l=13 is 32pt/d for L0=256)
                    // For gap=0.4,   l=13 is 6pt/delta)
                    // For gap=0.3,   l=14 is 9pt/delta)
                    // For gap=0.2,   l=14 is 6pt/delta)
                    // For gap=0.1,   l=15 is 6pt/delta)
                    // For gap=0.05,  l=16 is 6pt/delta)
                    // For gap=0.025, l=17 is 6pt/delta)
                    // For gap=0.01,  l=18 is 5pt/delta)
#else
#define lmax (13) // Max mesh refinement level (l=13 is 32pt/d for L0=256)
#endif // LMAX

#if CMAX
#define cmax (((double) (CMAX))*1.e-3*(uref))
#else // cmax = 1.e-2
#define cmax (1.e-2*(uref)) // Absolute refinement criteria for the velocity field
#endif // CMAX

int main ()
{

    The domain is 256\times 256 \times 256 by default.

    #if DLENGTH // 16, 32, 64, 128, 256
  L0 = ((double) (DLENGTH))*(d);
#else // L0 = 256
  L0 = 256.*(d);
#endif // DLENGTH
  size (L0);
  origin (-(L0)/2., -(L0)/2., -(L0)/2.);

    We set the maximum timestep.

    #if DTMAX
  DT = ((double) (DTMAX))*1.e-3*(tref);
#else // DT = 1.e-2
  DT = 1.e-2*(tref);
#endif // DTMAX

    We set the tolerance of the Poisson solver.

      stokes       = true;
  TOLERANCE    = 1.e-6;
  TOLERANCE_MU = 1.e-6*(uref);
  NITERMAX     = 200; // Convergence is more difficult for smaller gap sizes

    We initialize the grid.

      N = 1 << (lmem);
  init_grid (N);

  run();
}

    Boundary conditions

    We impose no-slip boundary conditions on all boundaries as the fluid is supposed to be at rest at an infinite distance from the plane.

    u.n[left] = dirichlet (0);
u.t[left] = dirichlet (0);
u.r[left] = dirichlet (0);
p[left]   = neumann (0);

u.n[right] = dirichlet (0);
u.t[right] = dirichlet (0);
u.r[right] = dirichlet (0);
p[right]   = neumann (0);

u.n[bottom] = dirichlet (0);
u.t[bottom] = dirichlet (0);
u.r[bottom] = dirichlet (0);
p[bottom]   = neumann (0);

u.n[top] = dirichlet (0);
u.t[top] = dirichlet (0);
u.r[top] = dirichlet (0);
p[top]   = neumann (0);

u.n[back] = dirichlet (0);
u.t[back] = dirichlet (0);
u.r[back] = dirichlet (0);
p[back]   = neumann (0);

u.n[front] = dirichlet (0);
u.t[front] = dirichlet (0);
u.r[front] = dirichlet (0);
p[front]   = neumann (0);

    We give boundary conditions for the face velocity to “potentially” improve the convergence of the multigrid Poisson solver.

    uf.n[left]   = 0;
uf.n[right]  = 0;
uf.n[bottom] = 0;
uf.n[top]    = 0;
uf.n[back]   = 0;
uf.n[front]  = 0;

    Properties

    event properties (i++)
{
  foreach_face()
    muv.x[] = (nu)*fm.x[];
  boundary ((scalar *) {muv});
}

    Initial conditions

    event init (i = 0)
{

    We set the viscosity field in the event properties.

      mu = muv;

    We use “third-order” face flux interpolation.

    #if ORDER2
  for (scalar s in {u, p})
    s.third = false;
#else
  for (scalar s in {u, p})
    s.third = true;
#endif // ORDER2

#if TREE

    When using TREE and in the presence of embedded boundaries, we should also define the gradient of u at the cell center of cut-cells.

    #endif // TREE

    We initialize the embedded boundary.

    We first define the sphere’s position.

      p_p.x = (h) + ((d)/2. + (gap)*(d)/2.);
  p_p.y = 0.;
  p_p.z = 0.;

    If the simulation is not restarted, we define the initial mesh and the initial velocity.

    Note here that we do not dump the pressure so the first drag computation after a restart will be incorrect.

      if (!restore (file = "restart")) {

#if TREE

    Before defining the embedded boundaries, we refine the mesh up to lmin in the vicinity of the particle.

        if ((lmem) < (lmin)) {
      refine ((sphere ((x - p_p.x),
		       (y - p_p.y),
		       (z - p_p.z),
		       2.*((L0)/(1 << (lmem))))) < 0. &&
	      level < (lmin));
      p_shape (cs, fs, p_p);
    }

    When using TREE, we refine the mesh around the embedded boundary.

        astats ss;
    int ic = 0;
    do {
      ic++;
      p_shape (cs, fs, p_p);
      ss = adapt_wavelet ({cs}, (double[]) {1.e-30},
			  maxlevel = (lmax), minlevel = (1));
    } while ((ss.nf || ss.nc) && ic < 100);
#endif // TREE
  }

    After initialization or restart, we still need to define the face fraction fs as it is not dumped.

      p_shape (cs, fs, p_p);

    Whether restarting or not, we define the volume fraction at the previous timestep csm1=cs.

      csm1 = cs;

    We define the boundary condition -u_{\mathrm{ref}}\mathbf{e_x} for the velocity.

      u.n[embed] = dirichlet (x > (h) + (gap)*(d)/4. ? -(uref) : 0.);
  u.t[embed] = dirichlet (0);
  u.r[embed] = dirichlet (0);
  p[embed]   = neumann (0);

  uf.n[embed] = dirichlet (x > (h) + (gap)*(d)/4. ? -(uref) : 0.);
  uf.t[embed] = dirichlet (0);
  uf.r[embed] = dirichlet (0);

    We finally initialize, even when restarting, the reference velocity field.

      foreach()
    un[] = u.x[];
}

    Embedded boundaries

    Adaptive mesh refinement

    #if TREE
event adapt (i++)
{
  adapt_wavelet ({cs,u}, (double[]) {1.e-1,(cmax),(cmax),(cmax)},
  		 maxlevel = (lmax), minlevel = (1));

    We also reset the embedded fractions to avoid interpolation errors on the geometry.

      p_shape (cs, fs, p_p);
}
#endif // TREE

    Restarts and dumps

    Every 100 time steps, we dump the fluid data for restarting purposes. We use a relatively small time step interval as the simulations with large values of lmax are relatively slow.

    #if DUMP
event dump_data (i += 100)
{
  // Dump fluid
  dump ("dump");
}
#endif // DUMP

event dump_end (t = end)
{
  // Dump fluid
  dump ("dump-final");
}

    Profiling

    #if TRACE > 1
event profiling (i += 20)
{
  static FILE * fp = fopen ("profiling", "a"); // In case of restart
  trace_print (fp, 1); // Display functions taking more than 1% of runtime.
}
#endif // TRACE

    Outputs

    We define a color volume fraction in order to compute the force acting only on the sphere.

    scalar col[];

double Fm1 = 0.;

event init (i = 0)
{
  trash ({col});
  Fm1 = 0.;
}

event logfile (i++; t <= 30.*(tref))
{
  double du = change (u.x, un);

    We update the color volume fraction.

      vertex scalar phi[];
  foreach_vertex()
    phi[] = (sphere ((x - p_p.x), (y - p_p.y), (z - p_p.z), (d)));
  boundary ({phi});
  fractions (phi, col);
  boundary ((scalar *) {col});

    We compute the hydrodynamic forces acting on the sphere.

      coord Fp, Fmu;
  embed_color_force (p, u, mu, col, &Fp, &Fmu);
  double F  = fabs (Fp.x + Fmu.x)/(6.*pi*(nu)*(uref)*(d)/2.);
  double dF = fabs (F - Fm1);
  Fm1 = F;

    We use the default log file to output the results. However, this file will be written over if the simulation is restarted.

      fprintf (stderr, "%g %g %d %d %d %g %g %d %d %d %d %d %d %g %g %g %g %g %g %g %g %g %g %g %g %g %g %g %g %g\n",
	   (gap), (L0)/(d), (lmin), (lmax),
	   i, t/(tref), dt/(tref),
	   mgp.i, mgp.nrelax, mgp.minlevel,
	   mgu.i, mgu.nrelax, mgu.minlevel,
	   mgp.resb, mgp.resa,
	   mgu.resb, mgu.resa,
	   Fp.x, Fp.y, Fp.z,
	   Fmu.x, Fmu.y, Fmu.z,
	   F,
	   (drag_correction_Brenner ((gap))), fabs (F - (drag_correction_Brenner ((gap)))),
	   (drag_correction_Cooley ((gap))),  fabs (F - (drag_correction_Cooley ((gap)))),
	   dF, du
	   );
  fflush (stderr);
}

    Snapshots

    event snapshot (t += 5.*(tref))
{
  scalar n2u[];
  foreach() {
    if (cs[] <= 0.)
      n2u[] = nodata;
    else
      n2u[] = sqrt (sq (u.x[]) + sq (u.y[]) + sq (u.z[]));
  }
  boundary ({n2u});
  stats sn2u = statsf (n2u);

  char name2[80];

    We first plot the whole domain.

      clear ();
  view (fov = 20, camera = "front",
	tx = 1.e-12, ty = 1.e-12,
	bg = {1,1,1}, width = 800, height = 800);

  squares ("cs", n = {0,0,1}, alpha = 1.e-12, min = 0, max = 1, map = cool_warm);
  cells (n = {0,0,1}, alpha = 1.e-12);
  sprintf (name2, "vof-t-%.0f.png", t/(tref));
  save (name2);

  squares ("n2u", n = {0,0,1}, alpha = 1.e-12, min = 0, max = sn2u.max, map = jet);
  sprintf (name2, "nu-t-%.0f.png", t/(tref));
  save (name2);

    We plot the mesh and embedded boundaries.

      //xy

  clear ();
  view (fov = 0.2*(256.*(d)/(L0)), camera = "front",
	tx = -(p_p.x)/(L0), ty = -(p_p.y)/(L0),
	bg = {1,1,1}, width = 800, height = 800);

  squares ("cs", n = {0,0,1}, alpha = 1.e-12, min = 0, max = 1, map = cool_warm);
  cells (n = {0,0,1}, alpha = 1.e-12);
  sprintf (name2, "vof-xy-t-%.0f.png", t/(tref));
  save (name2);

  squares ("n2u", n = {0,0,1}, alpha = 1.e-12, min = 0, max = sn2u.max, map = jet);
  sprintf (name2, "nu-xy-t-%.0f.png", t/(tref));
  save (name2);

  // xz

  clear ();
  view (fov = 0.2*(256.*(d)/(L0)), camera = "top",
	tx = -(p_p.x)/(L0), ty = -(p_p.z)/(L0),
	bg = {1,1,1}, width = 800, height = 800);

  squares ("cs", n = {0,1,0}, alpha = 1.e-12, min = 0, max = 1, map = cool_warm);
  cells (n = {0,1,0}, alpha = 1.e-12);
  sprintf (name2, "vof-xz-t-%.0f.png", t/(tref));
  save (name2);

  squares ("n2u", n = {0,1,0}, alpha = 1.e-12, min = 0, max = sn2u.max, map = jet);
  sprintf (name2, "nu-xz-t-%.0f.png", t/(tref));
  save (name2);
}

    Results

    Results for \frac{\delta}{r} = 0.3 using L0/d=128 and lmax=12

    Initial mesh and embedded boundaries

    Initial mesh and embedded boundaries

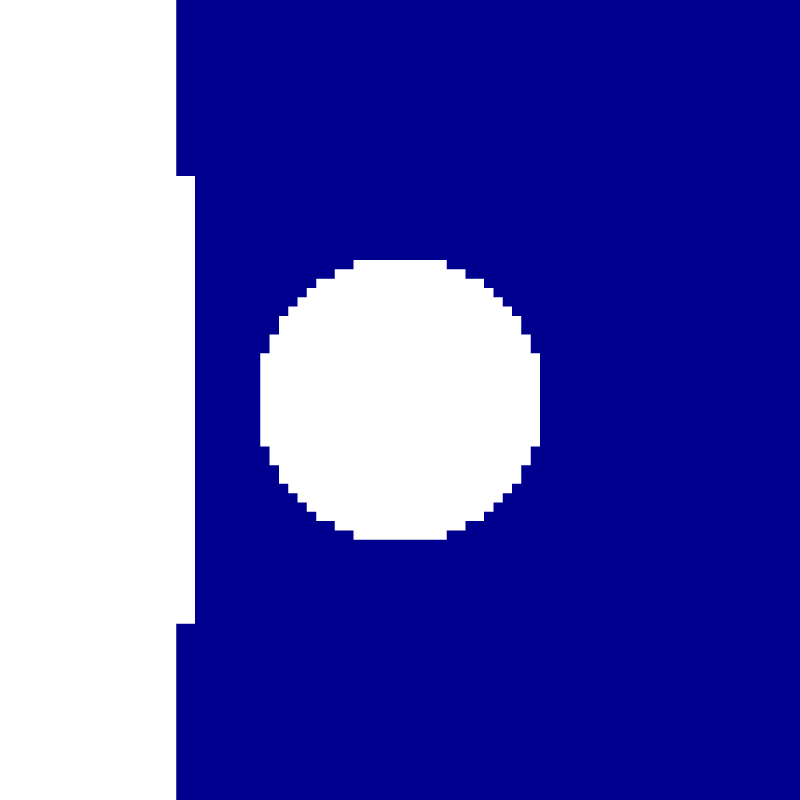

    Initial velocity

    Initial velocity

    reset
set terminal svg font ",16"
set key top right spacing 1.1
set grid ytics
set xtics 0,5,100
set ytics 0,2,10
set xlabel 't/t_{ref}'
set ylabel 'kappa'
set xrange [0:30]
set yrange [3:6]
set title "delta/r=0.3, dt=1e-2, delta/Delta_{max}=6"
plot 'log' u 6:25 w l lw 2 lc rgb 'blue'      t 'Brenner, 1961', \
     'log' u 6:27 w l lw 2 lc rgb 'red'       t 'Cooley et al., 1969', \
     ''    u 6:24 w l lw 2 lc rgb 'sea-green' t 'Basilisk'
    Time evolution of the normal force F_x (script)

    Time evolution of the normal force F_x (script)

    set ytics 1.e-8,1.e-1,100
set ylabel 'err (%)'
set yrange [1.e-3:1e2]
set logscale y
plot 'log' u 6:(100.*abs($27 - $25)/$25) w l lw 2 lc rgb 'black' t 'Error between Brenner and Cooley', \
     ''    u 6:(100.*$26/$25)            w l lw 2 lc rgb 'blue'  t 'Error with Brenner, 1961', \
     ''    u 6:(100.*$28/$27)            w l lw 2 lc rgb 'red'   t 'Error with Cooley et al., 1969'
    Time evolution of the relative error for the normal force F_x (script)

    Time evolution of the relative error for the normal force F_x (script)

    Plots specific to paper

    Domain size study for \delta/r=0.4 and DT=1e-2 and cmax=1e-2

    ~ {.bash} reset set terminal svg font “,16” set key top right font “,14” spacing 1 set grid ytics set xtics 0,5,100 set ytics 0,0.1,10 set xlabel ‘t/t_{ref}’ set ylabel ‘kappa’ set xrange [0:30] set yrange [3.6:4] set title ‘delta/r=0.4, dt=1e-2, delta/Delta_{max}=12, cmax=1e-2’

    Average correction factor kappa

    ftitle(a) = sprintf(“, kappa_{inf}=%2.4f”, a);

    f1(x) = a1 + b1exp(-abs(c1)x); # L0 = 16 f2(x) = a2 + b2exp(-abs(c2)x); # L0 = 32 f3(x) = a3 + b3exp(-abs(c3)x); # L0 = 64 f4(x) = a4 + b4exp(-abs(c4)x); # L0 = 128
    gnuplot: warning: Cannot find or open file “gap-400/dtmax-10e-3/L0-16/lmax-10/cmax-10e-3/log”
    gnuplot: Can’t read data from
    f5(x) = a5 + b5*exp(-abs(c5)*x); # L0 = 256

set fit errorvariables
fit [20:*][3.5:4] f1(x) 'gap-400/dtmax-10e-3/L0-16/lmax-10/cmax-10e-3/log'  u 6:24 via a1,b1,c1; # L0 = 16
fit [20:*][3.5:4] f2(x) 'gap-400/dtmax-10e-3/L0-32/lmax-11/cmax-10e-3/log'  u 6:24 via a2,b2,c2; # L0 = 32
fit [20:*][3.5:4] f3(x) 'gap-400/dtmax-10e-3/L0-64/lmax-12/cmax-10e-3/log'  u 6:24 via a3,b3,c3; # L0 = 64
fit [20:*][3.5:4] f4(x) 'gap-400/dtmax-10e-3/L0-128/lmax-13/cmax-10e-3/log' u 6:24 via a4,b4,c4; # L0 = 128
fit [20:*][3.5:4] f5(x) 'gap-400/dtmax-10e-3/L0-256/lmax-14/cmax-10e-3/log' u 6:24 via a5,b5,c5; # L0 = 256

set print "gap-400-dtmax-10e-3-cmax-10e-3-domain.dat"
print 16  , a1 , a1_err , 100.*abs (a1 - a5)/a5 , 100.*abs (a1 - 3.73562)/3.73562
print 32  , a2 , a2_err , 100.*abs (a2 - a5)/a5 , 100.*abs (a2 - 3.73562)/3.73562
print 64  , a3 , a3_err , 100.*abs (a3 - a5)/a5 , 100.*abs (a3 - 3.73562)/3.73562
print 128 , a4 , a4_err , 100.*abs (a4 - a5)/a5 , 100.*abs (a4 - 3.73562)/3.73562
print 256 , a5 , a5_err , 0 , 100.*abs (a5 - 3.73562)/3.73562
set print

plot 'gap-400/dtmax-10e-3/L0-16/lmax-10/cmax-10e-3/log'  u 6:25 w l lw 2 lc rgb 'brown'     t 'Brenner, 1961', \
     'gap-400/dtmax-10e-3/L0-16/lmax-10/cmax-10e-3/log'  u 6:27 w l lw 2 lc rgb 'gray'      t 'Cooley et al., 1969', \
     'gap-400/dtmax-10e-3/L0-16/lmax-10/cmax-10e-3/log'  u 6:24 w l lw 1 lc rgb 'black'     t '{\delta}/r=0.4, L0/d=16'.ftitle(a1), \
     'gap-400/dtmax-10e-3/L0-32/lmax-11/cmax-10e-3/log'  u 6:24 w l lw 1 lc rgb 'blue'      t 'L0/d=32'.ftitle(a2), \
     'gap-400/dtmax-10e-3/L0-64/lmax-12/cmax-10e-3/log'  u 6:24 w l lw 1 lc rgb 'red'       t 'L0/d=64'.ftitle(a3), \
     'gap-400/dtmax-10e-3/L0-128/lmax-13/cmax-10e-3/log' u 6:24 w l lw 1 lc rgb 'sea-green' t 'L0/d=128'.ftitle(a4), \
     'gap-400/dtmax-10e-3/L0-256/lmax-14/cmax-10e-3/log' u 6:24 w l lw 1 lc rgb 'orange'    t 'L0/d=256'.ftitle(a5)
    Time evolution of the normal force F_x (script)

    Time evolution of the normal force F_x (script)

    reset
set terminal svg font ",16"
set key top right spacing 1.1
set grid ytics
set xtics 8,2,256
set ytics 1.e-8,1.e-1,100
set xlabel 'L_0/d'
set ylabel 'err (%)'
set xrange [8:512]
set yrange [1.e-4:1e1]
set logscale
set title 'delta/r=0.4, dt=1e-2, delta/Delta_{max}=12, cmax=1e-2'
plot 'gap-400-dtmax-10e-3-cmax-10e-3-domain.dat' u 1:4 w lp pt 6 ps 1.25 lw 1 lc rgb "black" t 'Error with reference solution for L_0/d=256', \
     'gap-400-dtmax-10e-3-cmax-10e-3-domain.dat' u 1:5 w lp pt 3 ps 1.25 lw 1 lc rgb "blue"  t 'Error with Brenner, 1961'
    Evolution of the relative error for the normal force F_x with the size of the domain L0 (script)

    Evolution of the relative error for the normal force F_x with the size of the domain L0 (script)

    set ytics -4,1,4
set grid ytics
set xlabel 'L_0/d'
set ylabel 'Order'
set xrange [16:256]
set yrange [0:4]
unset logscale y
set title 'delta/r=0.4, dt=1e-2, delta/Delta_{max}=12, cmax=1e-2'
plot '< sort -k 1,1n gap-400-dtmax-10e-3-cmax-10e-3-domain.dat | awk -f ../data/Brenner1961/order-domain.awk'  u 1:2 w lp ps 1.25 pt 7 lc rgb "black" notitle
    Order of convergence of the normal force F_x with the size of the domain L0 (script)

    Order of convergence of the normal force F_x with the size of the domain L0 (script)

    Mesh and time convergence study for \delta/r = 0.4 and L0=256

    ~ {.bash} reset set terminal svg font “,16” set key top right font “,8” spacing 0.7 set grid ytics set xtics 0,5,100 set ytics 0,0.1,10 set xlabel ‘t/t_{ref}’ set ylabel ‘kappa’ set xrange [0:30] set yrange [3.6:4] set title ‘delta/r=0.4, L0=256’

    Average correction factor kappa

    ftitle(a) = sprintf(“, kappa_{inf}=%2.4f”, a);

    f11(x) = a11 + b11exp(-abs(c11)x); # L0 = 256, lmax = 12 f12(x) = a12 + b12exp(-abs(c12)x); # L0 = 256, lmax = 13 f13(x) = a13 + b13exp(-abs(c13)x); # L0 = 256, lmax = 14 f14(x) = a14 + b14exp(-abs(c14)x); # L0 = 256, lmax = 15

    f21(x) = a21 + b21exp(-abs(c21)x); # L0 = 256, lmax = 12 f22(x) = a22 + b22exp(-abs(c22)x); # L0 = 256, lmax = 13 f23(x) = a23 + b23exp(-abs(c23)x); # L0 = 256, lmax = 14 f24(x) = a24 + b24exp(-abs(c24)x); # L0 = 256, lmax = 15

    f31(x) = a31 + b31exp(-abs(c31)x); # L0 = 256, lmax = 12 f32(x) = a32 + b32exp(-abs(c32)x); # L0 = 256, lmax = 13 f33(x) = a33 + b33exp(-abs(c33)x); # L0 = 256, lmax = 14 f34(x) = a34 + b34exp(-abs(c34)x); # L0 = 256, lmax = 15

    f41(x) = a41 + b41exp(-abs(c41)x); # L0 = 256, lmax = 12 f42(x) = a42 + b42exp(-abs(c42)x); # L0 = 256, lmax = 13 f43(x) = a43 + b43exp(-abs(c43)x); # L0 = 256, lmax = 14 f44(x) = a44 + b44exp(-abs(c44)x); # L0 = 256, lmax = 15

    set fit errorvariables

    fit [20:*][3.5:4] f11(x) ‘gap-400/dtmax-10e-3/L0-256/lmax-12/cmax-10e-3/log’ u 6:24 via a11,b11,c11; # L0 = 256, lmax = 12 fit [20:*][3.5:4] f12(x) ‘gap-400/dtmax-10e-3/L0-256/lmax-13/cmax-10e-3/log’ u 6:24 via a12,b12,c12; # L0 = 256, lmax = 13 fit [20:*][3.5:4] f13(x) ‘gap-400/dtmax-10e-3/L0-256/lmax-14/cmax-10e-3/log’ u 6:24 via a13,b13,c13; # L0 = 256, lmax = 14 fit [20:*][3.5:4] f14(x) ‘gap-400/dtmax-10e-3/L0-256/lmax-15/cmax-10e-3/log’ u 6:24 via a14,b14,c14; # L0 = 256, lmax = 15

    fit [20:*][3.5:4] f21(x) ‘gap-400/dtmax-1e-3/L0-256/lmax-12/cmax-10e-3/log’ u 6:24 via a21,b21,c21; # L0 = 256, lmax = 12 fit [20:*][3.5:4] f22(x) ‘gap-400/dtmax-1e-3/L0-256/lmax-13/cmax-10e-3/log’ u 6:24 via a22,b22,c22; # L0 = 256, lmax = 13 fit [20:*][3.5:4] f23(x) ‘gap-400/dtmax-1e-3/L0-256/lmax-14/cmax-10e-3/log’ u 6:24 via a23,b23,c23; # L0 = 256, lmax = 14 fit [1.:*][3.5:*] f24(x) ‘gap-400/dtmax-1e-3/L0-256/lmax-15/cmax-10e-3/log’ u 6:24 via a24,b24,c24; # L0 = 256, lmax = 15

    fit [20:*][3.5:4] f31(x) ‘gap-400/dtmax-10e-3/L0-256/lmax-12/cmax-1e-3/log’ u 6:24 via a31,b31,c31; # L0 = 256, lmax = 12 fit [20:*][3.5:4] f32(x) ‘gap-400/dtmax-10e-3/L0-256/lmax-13/cmax-1e-3/log’ u 6:24 via a32,b32,c32; # L0 = 256, lmax = 13 fit [20:*][3.5:4] f33(x) ‘gap-400/dtmax-10e-3/L0-256/lmax-14/cmax-1e-3/log’ u 6:24 via a33,b33,c33; # L0 = 256, lmax = 14 fit [20:*][3.5:4] f34(x) ‘gap-400/dtmax-10e-3/L0-256/lmax-15/cmax-1e-3/log’ u 6:24 via a34,b34,c34; # L0 = 256, lmax = 15

    fit [20:*][3.5:4] f41(x) ‘gap-400/dtmax-1e-3/L0-256/lmax-12/cmax-1e-3/log’ u 6:24 via a41,b41,c41; # L0 = 256, lmax = 12 fit [20:*][3.5:4] f42(x) ‘gap-400/dtmax-1e-3/L0-256/lmax-13/cmax-1e-3/log’ u 6:24 via a42,b42,c42; # L0 = 256, lmax = 13 fit [20:*][3.5:*] f43(x) ‘gap-400/dtmax-1e-3/L0-256/lmax-14/cmax-1e-3/log’ u 6:24 via a43,b43,c43; # L0 = 256, lmax = 14 fit [5.:*][3.5:*] f44(x) ‘gap-400/dtmax-1e-3/L0-256/lmax-15/cmax-1e-3/log’ u 6:24 via a44,b44,c44; # L0 = 256, lmax = 15

    set print “gap-400-dtmax-1e-2-L0-256-cmax-1e-2-convergence.dat” print 1.e-2 , 0.40.5/256212 , a11 , a11_err , 100.abs (a11 - a44)/a44 , 100.abs (a11 - 3.73562)/3.73562 print 1.e-2 , 0.40.5/256213 , a12 , a12_err , 100.abs (a12 - a44)/a44 , 100.abs (a12 - 3.73562)/3.73562 print 1.e-2 , 0.40.5/256214 , a13 , a13_err , 100.abs (a13 - a44)/a44 , 100.abs (a13 - 3.73562)/3.73562 print 1.e-2 , 0.40.5/256215 , a14 , a14_err , 100.abs (a14 - a44)/a44 , 100.abs (a14 - 3.73562)/3.73562 set print

    set print “gap-400-dtmax-1e-3-L0-256-cmax-1e-2-convergence.dat” print 1.e-3 , 0.40.5/256212 , a21 , a21_err , 100.abs (a21 - a44)/a44 , 100.abs (a21 - 3.73562)/3.73562 print 1.e-3 , 0.40.5/256213 , a22 , a22_err , 100.abs (a22 - a44)/a44 , 100.abs (a22 - 3.73562)/3.73562 print 1.e-3 , 0.40.5/256214 , a23 , a23_err , 100.abs (a23 - a44)/a44 , 100.abs (a23 - 3.73562)/3.73562 print 1.e-3 , 0.40.5/256215 , a24 , a24_err , 100.abs (a24 - a44)/a44 , 100.abs (a24 - 3.73562)/3.73562 set print

    set print “gap-400-dtmax-1e-2-L0-256-cmax-1e-3-convergence.dat” print 1.e-2 , 0.40.5/256212 , a31 , a31_err , 100.abs (a31 - a44)/a44 , 100.abs (a31 - 3.73562)/3.73562 print 1.e-2 , 0.40.5/256213 , a32 , a32_err , 100.abs (a32 - a44)/a44 , 100.abs (a32 - 3.73562)/3.73562 print 1.e-2 , 0.40.5/256214 , a33 , a33_err , 100.abs (a33 - a44)/a44 , 100.abs (a33 - 3.73562)/3.73562 print 1.e-2 , 0.40.5/256215 , a34 , a34_err , 100.abs (a34 - a44)/a44 , 100.abs (a34 - 3.73562)/3.73562 set print

    set print “gap-400-dtmax-1e-3-L0-256-cmax-1e-3-convergence.dat” print 1.e-3 , 0.40.5/256212 , a41 , a41_err , 100.abs (a41 - a44)/a44 , 100.abs (a41 - 3.73562)/3.73562 print 1.e-3 , 0.40.5/256213 , a42 , a42_err , 100.abs (a42 - a44)/a44 , 100.abs (a42 - 3.73562)/3.73562 print 1.e-3 , 0.40.5/256214 , a43 , a43_err , 100.abs (a43 - a44)/a44 , 100.abs (a43 - 3.73562)/3.73562 print 1.e-3 , 0.40.5/256215 , a44 , a44_err , 0 , 100.*abs (a44 - 3.73562)/3.73562 set print

    plot ‘gap-400/dtmax-10e-3/L0-256/lmax-12/cmax-10e-3/log’ u 6:25 w l lw 2 lc rgb ‘brown’ t ‘Brenner, 1961’,
    ‘gap-400/dtmax-10e-3/L0-256/lmax-12/cmax-10e-3/log’ u 6:27 w l lw 2 lc rgb ‘gray’ t ‘Cooley et al., 1969’,
    ‘gap-400/dtmax-10e-3/L0-256/lmax-12/cmax-10e-3/log’ u 6:24 w lp pt 6 ps 1.25 pi 400 lw 1 lc rgb ‘black’ t ‘{}/r=0.4, dt=1e-2, cmax=1e-2, lmax=12’.ftitle(a11),
    ‘gap-400/dtmax-10e-3/L0-256/lmax-13/cmax-10e-3/log’ u 6:24 w lp pt 3 ps 1.25 pi 400 lw 1 lc rgb ‘black’ t ‘lmax=13’.ftitle(a12),
    ‘gap-400/dtmax-10e-3/L0-256/lmax-14/cmax-10e-3/log’ u 6:24 w lp pt 8 ps 1.25 pi 400 lw 1 lc rgb ‘black’ t ‘lmax=14’.ftitle(a13),
    ‘gap-400/dtmax-10e-3/L0-256/lmax-15/cmax-10e-3/log’ u 6:24 w lp pt 1 ps 1.25 pi 400 lw 1 lc rgb ‘black’ t ‘lmax=15’.ftitle(a14),
    ‘gap-400/dtmax-1e-3/L0-256/lmax-12/cmax-10e-3/log’ u 6:24 w lp pt 6 ps 1.25 pi 4000 lw 1 lc rgb ‘blue’ t ‘{}/r=0.4, dt=1e-3, cmax=1e-2, lmax=12’.ftitle(a21),
    ‘gap-400/dtmax-1e-3/L0-256/lmax-13/cmax-10e-3/log’ u 6:24 w lp pt 3 ps 1.25 pi 4000 lw 1 lc rgb ‘blue’ t ‘lmax=13’.ftitle(a22),
    ‘gap-400/dtmax-1e-3/L0-256/lmax-14/cmax-10e-3/log’ u 6:24 w lp pt 8 ps 1.25 pi 4000 lw 1 lc rgb ‘blue’ t ‘lmax=14’.ftitle(a23),
    ‘gap-400/dtmax-1e-3/L0-256/lmax-15/cmax-10e-3/log’ u 6:24 w lp pt 1 ps 1.25 pi 4000 lw 1 lc rgb ‘blue’ t ‘lmax=15’.ftitle(a24),
    ‘gap-400/dtmax-10e-3/L0-256/lmax-12/cmax-1e-3/log’ u 6:24 w lp pt 6 ps 1.25 pi 400 lw 1 lc rgb ‘red’ t ‘{}/r=0.4, dt=1e-2, cmax=1e-3, lmax=12’.ftitle(a31),
    ‘gap-400/dtmax-10e-3/L0-256/lmax-13/cmax-1e-3/log’ u 6:24 w lp pt 3 ps 1.25 pi 400 lw 1 lc rgb ‘red’ t ‘lmax=13’.ftitle(a32),
    ‘gap-400/dtmax-10e-3/L0-256/lmax-14/cmax-1e-3/log’ u 6:24 w lp pt 8 ps 1.25 pi 400 lw 1 lc rgb ‘red’ t ‘lmax=14’.ftitle(a33),
    ‘gap-400/dtmax-10e-3/L0-256/lmax-15/cmax-1e-3/log’ u 6:24 w lp pt 1 ps 1.25 pi 400 lw 1 lc rgb ‘red’ t ‘lmax=15’.ftitle(a34),
    ‘gap-400/dtmax-1e-3/L0-256/lmax-12/cmax-1e-3/log’ u 6:24 w lp pt 6 ps 1.25 pi 4000 lw 1 lc rgb ‘sea-green’ t ‘{}/r=0.4, dt=1e-3, cmax=1e-3, lmax=12’.ftitle(a41),
    ‘gap-400/dtmax-1e-3/L0-256/lmax-13/cmax-1e-3/log’ u 6:24 w lp pt 3 ps 1.25 pi 4000 lw 1 lc rgb ‘sea-green’ t ‘lmax=13’.ftitle(a42),
    ‘gap-400/dtmax-1e-3/L0-256/lmax-14/cmax-1e-3/log’ u 6:24 w lp pt 8 ps 1.25 pi 4000 lw 1 lc rgb ‘sea-green’ t ‘lmax=14’.ftitle(a43),
    ‘gap-400/dtmax-1e-3/L0-256/lmax-15/cmax-1e-3/log’ u 6:24 w lp pt 1 ps 1.25 pi 4000 lw 1 lc rgb ‘sea-green’ t ‘lmax=15’.ftitle(a44) ~u

    set ytics 1.e-8,1.e-1,100
set ylabel 'err (%)'
set yrange [1.e-4:1e2]
set logscale y
set title 'delta/r=0.4, L0=256'
plot 'gap-400/dtmax-10e-3/L0-256/lmax-12/cmax-10e-3/log' u 6:(100.*abs($27 - $25)/$25) w l lw 2 lc rgb 'brown' t 'Error between Brenner and Cooley', \
     'gap-400/dtmax-10e-3/L0-256/lmax-12/cmax-10e-3/log' u 6:(100.*$26/$25) w lp pt 6 ps 1.25 pi 400  lw 1 lc rgb 'black'     t '{\delta}/r=0.4, dt=1e-2, cmax=1e-2, lmax=12', \
     'gap-400/dtmax-10e-3/L0-256/lmax-13/cmax-10e-3/log' u 6:(100.*$26/$25) w lp pt 3 ps 1.25 pi 400  lw 1 lc rgb 'black'     t 'lmax=13', \
     'gap-400/dtmax-10e-3/L0-256/lmax-14/cmax-10e-3/log' u 6:(100.*$26/$25) w lp pt 8 ps 1.25 pi 400  lw 1 lc rgb 'black'     t 'lmax=14', \
     'gap-400/dtmax-10e-3/L0-256/lmax-15/cmax-10e-3/log' u 6:(100.*$26/$25) w lp pt 1 ps 1.25 pi 400  lw 1 lc rgb 'black'     t 'lmax=15', \
     'gap-400/dtmax-1e-3/L0-256/lmax-12/cmax-10e-3/log'  u 6:(100.*$26/$25) w lp pt 6 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t '{\delta}/r=0.4, dt=1e-3, cmax=1e-2, lmax=12', \
     'gap-400/dtmax-1e-3/L0-256/lmax-13/cmax-10e-3/log'  u 6:(100.*$26/$25) w lp pt 3 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t 'lmax=13', \
     'gap-400/dtmax-1e-3/L0-256/lmax-14/cmax-10e-3/log'  u 6:(100.*$26/$25) w lp pt 8 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t 'lmax=14', \
     'gap-400/dtmax-1e-3/L0-256/lmax-15/cmax-10e-3/log'  u 6:(100.*$26/$25) w lp pt 1 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t 'lmax=15', \
     'gap-400/dtmax-10e-3/L0-256/lmax-12/cmax-1e-3/log'  u 6:(100.*$26/$25) w lp pt 6 ps 1.25 pi 400  lw 1 lc rgb 'red'       t '{\delta}/r=0.4, dt=1e-2, cmax=1e-3, lmax=12', \
     'gap-400/dtmax-10e-3/L0-256/lmax-13/cmax-1e-3/log'  u 6:(100.*$26/$25) w lp pt 3 ps 1.25 pi 400  lw 1 lc rgb 'red'       t 'lmax=13', \
     'gap-400/dtmax-10e-3/L0-256/lmax-14/cmax-1e-3/log'  u 6:(100.*$26/$25) w lp pt 8 ps 1.25 pi 400  lw 1 lc rgb 'red'       t 'lmax=14', \
     'gap-400/dtmax-10e-3/L0-256/lmax-15/cmax-1e-3/log'  u 6:(100.*$26/$25) w lp pt 1 ps 1.25 pi 400  lw 1 lc rgb 'red'       t 'lmax=15', \
     'gap-400/dtmax-1e-3/L0-256/lmax-12/cmax-1e-3/log'   u 6:(100.*$26/$25) w lp pt 6 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t '{\delta}/r=0.4, dt=1e-3, cmax=1e-3, lmax=12', \
     'gap-400/dtmax-1e-3/L0-256/lmax-13/cmax-1e-3/log'   u 6:(100.*$26/$25) w lp pt 3 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t 'lmax=13', \
     'gap-400/dtmax-1e-3/L0-256/lmax-14/cmax-1e-3/log'   u 6:(100.*$26/$25) w lp pt 8 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t 'lmax=14', \
     'gap-400/dtmax-1e-3/L0-256/lmax-15/cmax-1e-3/log'   u 6:(100.*$26/$25) w lp pt 1 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t 'lmax=15'
    Time evolution of the relative error for the nornal force F_x (script)

    Time evolution of the relative error for the nornal force F_x (script)

    reset
set terminal svg font ",16"
set key top right font ",14" spacing 1
set grid ytics
set xtics 1.5,2,21
set ytics 1.e-8,1.e-1,100
set xlabel 'delta/Delta_{max}'
set ylabel 'err (%)'
set xrange [1.5:48]
set yrange [1.e-3:1e2]
set logscale
plot 'gap-400-dtmax-1e-2-L0-256-cmax-1e-2-convergence.dat' u 2:5 w lp pt 6 ps 1.25 lw 1 lc rgb "black"     t 'Error with reference solution, {\delta}/r=0.4, dt=1e-2, cmax=1e-2', \
     'gap-400-dtmax-1e-3-L0-256-cmax-1e-2-convergence.dat' u 2:5 w lp pt 3 ps 1.25 lw 1 lc rgb "blue"      t 'dt=1e-3, cmax=1e-2', \
     'gap-400-dtmax-1e-2-L0-256-cmax-1e-3-convergence.dat' u 2:5 w lp pt 8 ps 1.25 lw 1 lc rgb "red"       t 'dt=1e-2, cmax=1e-3', \
     'gap-400-dtmax-1e-3-L0-256-cmax-1e-3-convergence.dat' u 2:5 w lp pt 1 ps 1.25 lw 1 lc rgb "sea-green" t 'dt=1e-3, cmax=1e-3'
    Evolution of the relative error for the normal force F_x with the reference solution (script)

    Evolution of the relative error for the normal force F_x with the reference solution (script)

    plot 'gap-400-dtmax-1e-2-L0-256-cmax-1e-2-convergence.dat' u 2:6 w lp pt 6 ps 1.25 lw 1 lc rgb "black"     t 'Error with Brenner, 1961, {\delta}/r=0.4, dt=1e-2, cmax=1e-2', \
     'gap-400-dtmax-1e-3-L0-256-cmax-1e-2-convergence.dat' u 2:6 w lp pt 3 ps 1.25 lw 1 lc rgb "blue"      t 'dt=1e-3, cmax=1e-2', \
     'gap-400-dtmax-1e-2-L0-256-cmax-1e-3-convergence.dat' u 2:6 w lp pt 8 ps 1.25 lw 1 lc rgb "red"       t 'dt=1e-2, cmax=1e-3', \
     'gap-400-dtmax-1e-3-L0-256-cmax-1e-3-convergence.dat' u 2:6 w lp pt 1 ps 1.25 lw 1 lc rgb "sea-green" t 'dt=1e-3, cmax=1e-3'
    Evolution of the relative error for the normal force F_x with analytic solution (script)

    Evolution of the relative error for the normal force F_x with analytic solution (script)

    Mesh and time convergence study for \delta/r = 0.05 and L0=256

    reset
set terminal svg font ",16"
set key top right font ",8" spacing 0.7
set grid ytics
set xtics 0,5,100
set ytics 0,0.5,10
set xlabel 't/t_{ref}'
set ylabel 'kappa'
set xrange [0:30]
set yrange [21:23]

# Average correction factor kappa

ftitle(a) = sprintf(", kappa_{inf}=%2.4f", a);

f11(x) = a11 + b11*exp(-abs(c11)*x); # L0 = 256, lmax = 15
f12(x) = a12 + b12*exp(-abs(c12)*x); # L0 = 256, lmax = 16
f13(x) = a13 + b13*exp(-abs(c13)*x); # L0 = 256, lmax = 17
f14(x) = a14 + b14*exp(-abs(c14)*x); # L0 = 256, lmax = 18

f21(x) = a21 + b21*exp(-abs(c21)*x); # L0 = 256, lmax = 15
f22(x) = a22 + b22*exp(-abs(c22)*x); # L0 = 256, lmax = 16
f23(x) = a23 + b23*exp(-abs(c23)*x); # L0 = 256, lmax = 17
f24(x) = a24 + b24*exp(-abs(c24)*x); # L0 = 256, lmax = 18

f31(x) = a31 + b31*exp(-abs(c31)*x); # L0 = 256, lmax = 15
f32(x) = a32 + b32*exp(-abs(c32)*x); # L0 = 256, lmax = 16
f33(x) = a33 + b33*exp(-abs(c33)*x); # L0 = 256, lmax = 17
f34(x) = a34 + b34*exp(-abs(c34)*x); # L0 = 256, lmax = 18

f41(x) = a41 + b41*exp(-abs(c41)*x); # L0 = 256, lmax = 15
f42(x) = a42 + b42*exp(-abs(c42)*x); # L0 = 256, lmax = 16
f43(x) = a43 + b43*exp(-abs(c43)*x); # L0 = 256, lmax = 17
f44(x) = a44 + b44*exp(-abs(c44)*x); # L0 = 256, lmax = 18

set fit errorvariables

fit [20:*][21:*] f11(x) 'gap-50/dtmax-10e-3/L0-256/lmax-15/cmax-10e-3/log' u 6:24 via a11,b11,c11; # L0 = 256, lmax = 15
fit [20:*][21:*] f12(x) 'gap-50/dtmax-10e-3/L0-256/lmax-16/cmax-10e-3/log' u 6:24 via a12,b12,c12; # L0 = 256, lmax = 16
fit [20:*][21:*] f13(x) 'gap-50/dtmax-10e-3/L0-256/lmax-17/cmax-10e-3/log' u 6:24 via a13,b13,c13; # L0 = 256, lmax = 17
fit [2.:*][21:*] f14(x) 'gap-50/dtmax-10e-3/L0-256/lmax-18/cmax-10e-3/log' u 6:24 via a14,b14,c14; # L0 = 256, lmax = 18

fit [20:*][21:*] f21(x) 'gap-50/dtmax-1e-3/L0-256/lmax-15/cmax-10e-3/log'  u 6:24 via a21,b21,c21; # L0 = 256, lmax = 15
fit [10:*][21:*] f22(x) 'gap-50/dtmax-1e-3/L0-256/lmax-16/cmax-10e-3/log'  u 6:24 via a22,b22,c22; # L0 = 256, lmax = 16
fit [1.:*][21:*] f23(x) 'gap-50/dtmax-1e-3/L0-256/lmax-17/cmax-10e-3/log'  u 6:24 via a23,b23,c23; # L0 = 256, lmax = 17
fit [0.1:*][3.5:*] f24(x) 'gap-50/dtmax-1e-3/L0-256/lmax-18/cmax-10e-3/log'  u 6:24 via a24,b24,c24; # L0 = 256, lmax = 18

fit [20:*][21:*] f31(x) 'gap-50/dtmax-10e-3/L0-256/lmax-15/cmax-1e-3/log' u 6:24 via a31,b31,c31; # L0 = 256, lmax = 15
fit [20:*][21:*] f32(x) 'gap-50/dtmax-10e-3/L0-256/lmax-16/cmax-1e-3/log' u 6:24 via a32,b32,c32; # L0 = 256, lmax = 16
fit [5.:*][21:*] f33(x) 'gap-50/dtmax-10e-3/L0-256/lmax-17/cmax-1e-3/log' u 6:24 via a33,b33,c33; # L0 = 256, lmax = 17
fit [0.1:*][21:*] f34(x) 'gap-50/dtmax-10e-3/L0-256/lmax-18/cmax-1e-3/log' u 6:24 via a34,b34,c34; # L0 = 256, lmax = 18

fit [10:*][21:*] f41(x) 'gap-50/dtmax-1e-3/L0-256/lmax-15/cmax-1e-3/log'  u 6:24 via a41,b41,c41; # L0 = 256, lmax = 15
fit [1.:*][21:*] f42(x) 'gap-50/dtmax-1e-3/L0-256/lmax-16/cmax-1e-3/log'  u 6:24 via a42,b42,c42; # L0 = 256, lmax = 16
fit [0.1:*][21:*] f43(x) 'gap-50/dtmax-1e-3/L0-256/lmax-17/cmax-1e-3/log'  u 6:24 via a43,b43,c43; # L0 = 256, lmax = 17
#fit [0.1:*][21:*] f44(x) 'gap-50/dtmax-1e-3/L0-256/lmax-18/cmax-1e-3/log'  u 6:24 via a44,b44,c44; # L0 = 256, lmax = 18

set print "gap-50-dtmax-1e-2-L0-256-cmax-1e-2-convergence.dat"
print 1.e-2 , 0.05*0.5/256*2**15 , a11 , a11_err , 100.*abs (a11 - a34)/a34 , 100.*abs (a11 - 21.5858)/21.5858
print 1.e-2 , 0.05*0.5/256*2**16 , a12 , a12_err , 100.*abs (a12 - a34)/a34 , 100.*abs (a12 - 21.5858)/21.5858
print 1.e-2 , 0.05*0.5/256*2**17 , a13 , a13_err , 100.*abs (a13 - a34)/a34 , 100.*abs (a13 - 21.5858)/21.5858
print 1.e-2 , 0.05*0.5/256*2**18 , a14 , a14_err , 100.*abs (a14 - a34)/a34 , 100.*abs (a14 - 21.5858)/21.5858
set print

set print "gap-50-dtmax-1e-3-L0-256-cmax-1e-2-convergence.dat"
print 1.e-3 , 0.05*0.5/256*2**15 , a21 , a21_err , 100.*abs (a21 - a34)/a34 , 100.*abs (a21 - 21.5858)/21.5858
print 1.e-3 , 0.05*0.5/256*2**16 , a22 , a22_err , 100.*abs (a22 - a34)/a34 , 100.*abs (a22 - 21.5858)/21.5858
print 1.e-3 , 0.05*0.5/256*2**17 , a23 , a23_err , 100.*abs (a23 - a34)/a34 , 100.*abs (a23 - 21.5858)/21.5858
print 1.e-3 , 0.05*0.5/256*2**18 , a24 , a24_err , 100.*abs (a24 - a34)/a34 , 100.*abs (a24 - 21.5858)/21.5858
set print

set print "gap-50-dtmax-1e-2-L0-256-cmax-1e-3-convergence.dat"
print 1.e-2 , 0.05*0.5/256*2**15 , a31 , a31_err , 100.*abs (a31 - a34)/a34 , 100.*abs (a31 - 21.5858)/21.5858
print 1.e-2 , 0.05*0.5/256*2**16 , a32 , a32_err , 100.*abs (a32 - a34)/a34 , 100.*abs (a32 - 21.5858)/21.5858
print 1.e-2 , 0.05*0.5/256*2**17 , a33 , a33_err , 100.*abs (a33 - a34)/a34 , 100.*abs (a33 - 21.5858)/21.5858
print 1.e-2 , 0.05*0.5/256*2**18 , a34 , a34_err , 100.*abs (a34 - a34)/a34 , 100.*abs (a34 - 21.5858)/21.5858
set print

set print "gap-50-dtmax-1e-3-L0-256-cmax-1e-3-convergence.dat"
print 1.e-3 , 0.05*0.5/256*2**15 , a41 , a41_err , 100.*abs (a41 - a34)/a34 , 100.*abs (a41 - 21.5858)/21.5858
print 1.e-3 , 0.05*0.5/256*2**16 , a42 , a42_err , 100.*abs (a42 - a34)/a34 , 100.*abs (a42 - 21.5858)/21.5858
print 1.e-3 , 0.05*0.5/256*2**17 , a43 , a43_err , 100.*abs (a43 - a34)/a34 , 100.*abs (a43 - 21.5858)/21.5858
print 1.e-3 , 0.05*0.5/256*2**18 , a44 , a44_err , 0 , 100.*abs (a44 - 21.5858)/21.5858
set print

plot 'gap-50/dtmax-10e-3/L0-256/lmax-15/cmax-10e-3/log'  u 6:25 w l lw 2 lc rgb 'brown'     t 'Brenner, 1961', \
     'gap-50/dtmax-10e-3/L0-256/lmax-15/cmax-10e-3/log'  u 6:27 w l lw 2 lc rgb 'gray'      t 'Cooley et al., 1969', \
     'gap-50/dtmax-10e-3/L0-256/lmax-15/cmax-10e-3/log' u 6:24 w lp pt 6 ps 1.25 pi 400  lw 1 lc rgb 'black'     t '{\delta}/r=0.05, dt=1e-2, cmax=1e-2, lmax=15'.ftitle(a11), \
     'gap-50/dtmax-10e-3/L0-256/lmax-16/cmax-10e-3/log' u 6:24 w lp pt 3 ps 1.25 pi 400  lw 1 lc rgb 'black'     t 'lmax=16'.ftitle(a12), \
     'gap-50/dtmax-10e-3/L0-256/lmax-17/cmax-10e-3/log' u 6:24 w lp pt 8 ps 1.25 pi 400  lw 1 lc rgb 'black'     t 'lmax=17'.ftitle(a13), \
     'gap-50/dtmax-10e-3/L0-256/lmax-18/cmax-10e-3/log' u 6:24 w lp pt 1 ps 1.25 pi 400  lw 1 lc rgb 'black'     t 'lmax=18'.ftitle(a14), \
     'gap-50/dtmax-1e-3/L0-256/lmax-15/cmax-10e-3/log'  u 6:24 w lp pt 6 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t '{\delta}/r=0.05, dt=1e-3, cmax=1e-2, lmax=15'.ftitle(a21), \
     'gap-50/dtmax-1e-3/L0-256/lmax-16/cmax-10e-3/log'  u 6:24 w lp pt 3 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t 'lmax=16'.ftitle(a22), \
     'gap-50/dtmax-1e-3/L0-256/lmax-17/cmax-10e-3/log'  u 6:24 w lp pt 8 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t 'lmax=17'.ftitle(a23), \
     'gap-50/dtmax-1e-3/L0-256/lmax-18/cmax-10e-3/log'  u 6:24 w lp pt 1 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t 'lmax=18'.ftitle(a24), \
     'gap-50/dtmax-10e-3/L0-256/lmax-15/cmax-1e-3/log'  u 6:24 w lp pt 6 ps 1.25 pi 400  lw 1 lc rgb 'red'       t '{\delta}/r=0.05, dt=1e-2, cmax=1e-3, lmax=15'.ftitle(a31), \
     'gap-50/dtmax-10e-3/L0-256/lmax-16/cmax-1e-3/log'  u 6:24 w lp pt 3 ps 1.25 pi 400  lw 1 lc rgb 'red'       t 'lmax=16'.ftitle(a32), \
     'gap-50/dtmax-10e-3/L0-256/lmax-17/cmax-1e-3/log'  u 6:24 w lp pt 8 ps 1.25 pi 400  lw 1 lc rgb 'red'       t 'lmax=17'.ftitle(a33), \
     'gap-50/dtmax-10e-3/L0-256/lmax-18/cmax-1e-3/log'  u 6:24 w lp pt 1 ps 1.25 pi 400  lw 1 lc rgb 'red'       t 'lmax=18'.ftitle(a34), \
     'gap-50/dtmax-1e-3/L0-256/lmax-15/cmax-1e-3/log'   u 6:24 w lp pt 6 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t '{\delta}/r=0.05, dt=1e-3, cmax=1e-3, lmax=15'.ftitle(a41), \
     'gap-50/dtmax-1e-3/L0-256/lmax-16/cmax-1e-3/log'   u 6:24 w lp pt 3 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t 'lmax=16'.ftitle(a42), \
     'gap-50/dtmax-1e-3/L0-256/lmax-17/cmax-1e-3/log'   u 6:24 w lp pt 8 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t 'lmax=17'.ftitle(a43), \
     'gap-50/dtmax-1e-3/L0-256/lmax-18/cmax-1e-3/log'   u 6:24 w lp pt 1 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t 'lmax=18'.ftitle(a44)
    Time evolution of the normal force F_x (script)

    Time evolution of the normal force F_x (script)

    set ytics 1.e-8,1.e-1,100
set ylabel 'err (%)'
set yrange [1.e-4:1e2]
set logscale y
plot 'gap-50/dtmax-10e-3/L0-256/lmax-15/cmax-10e-3/log' u 6:(100.*abs($27 - $25)/$25) w l lw 2 lc rgb 'brown' t 'Error between Brenner and Cooley', \
     'gap-50/dtmax-10e-3/L0-256/lmax-15/cmax-10e-3/log' u 6:(100.*$26/$25) w lp pt 6 ps 1.25 pi 400  lw 1 lc rgb 'black'     t '{\delta}/r=0.05, dt=1e-2, cmax=1e-2, lmax=15', \
     'gap-50/dtmax-10e-3/L0-256/lmax-16/cmax-10e-3/log' u 6:(100.*$26/$25) w lp pt 3 ps 1.25 pi 400  lw 1 lc rgb 'black'     t 'lmax=16', \
     'gap-50/dtmax-10e-3/L0-256/lmax-17/cmax-10e-3/log' u 6:(100.*$26/$25) w lp pt 8 ps 1.25 pi 400  lw 1 lc rgb 'black'     t 'lmax=17', \
     'gap-50/dtmax-10e-3/L0-256/lmax-18/cmax-10e-3/log' u 6:(100.*$26/$25) w lp pt 1 ps 1.25 pi 400  lw 1 lc rgb 'black'     t 'lmax=18', \
     'gap-50/dtmax-1e-3/L0-256/lmax-15/cmax-10e-3/log'  u 6:(100.*$26/$25) w lp pt 6 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t '{\delta}/r=0.05, dt=1e-3, cmax=1e-2, lmax=15', \
     'gap-50/dtmax-1e-3/L0-256/lmax-16/cmax-10e-3/log'  u 6:(100.*$26/$25) w lp pt 3 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t 'lmax=16', \
     'gap-50/dtmax-1e-3/L0-256/lmax-17/cmax-10e-3/log'  u 6:(100.*$26/$25) w lp pt 8 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t 'lmax=17', \
     'gap-50/dtmax-1e-3/L0-256/lmax-18/cmax-10e-3/log'  u 6:(100.*$26/$25) w lp pt 1 ps 1.25 pi 4000 lw 1 lc rgb 'blue'      t 'lmax=18', \
     'gap-50/dtmax-10e-3/L0-256/lmax-15/cmax-1e-3/log'  u 6:(100.*$26/$25) w lp pt 6 ps 1.25 pi 400  lw 1 lc rgb 'red'       t '{\delta}/r=0.05, dt=1e-2, cmax=1e-3, lmax=15', \
     'gap-50/dtmax-10e-3/L0-256/lmax-16/cmax-1e-3/log'  u 6:(100.*$26/$25) w lp pt 3 ps 1.25 pi 400  lw 1 lc rgb 'red'       t 'lmax=16', \
     'gap-50/dtmax-10e-3/L0-256/lmax-17/cmax-1e-3/log'  u 6:(100.*$26/$25) w lp pt 8 ps 1.25 pi 400  lw 1 lc rgb 'red'       t 'lmax=17', \
     'gap-50/dtmax-10e-3/L0-256/lmax-18/cmax-1e-3/log'  u 6:(100.*$26/$25) w lp pt 1 ps 1.25 pi 400  lw 1 lc rgb 'red'       t 'lmax=18', \
     'gap-50/dtmax-1e-3/L0-256/lmax-15/cmax-1e-3/log'   u 6:(100.*$26/$25) w lp pt 6 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t '{\delta}/r=0.05, dt=1e-3, cmax=1e-3, lmax=15', \
     'gap-50/dtmax-1e-3/L0-256/lmax-16/cmax-1e-3/log'   u 6:(100.*$26/$25) w lp pt 3 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t 'lmax=16', \
     'gap-50/dtmax-1e-3/L0-256/lmax-17/cmax-1e-3/log'   u 6:(100.*$26/$25) w lp pt 8 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t 'lmax=17', \
     'gap-50/dtmax-1e-3/L0-256/lmax-18/cmax-1e-3/log'   u 6:(100.*$26/$25) w lp pt 1 ps 1.25 pi 4000 lw 1 lc rgb 'sea-green' t 'lmax=18'
    Time evolution of the relative error for the nornal force F_x (script)

    Time evolution of the relative error for the nornal force F_x (script)

    reset
set terminal svg font ",16"
set key top right font ",14" spacing 1
set grid ytics
set xtics 1.5,2,21
set ytics 1.e-8,1.e-1,100
set xlabel 'delta/Delta_{max}'
set ylabel 'err (%)'
set xrange [1.5:48]
set yrange [1.e-2:1e2]
set logscale
plot 'gap-50-dtmax-1e-2-L0-256-cmax-1e-2-convergence.dat' u 2:5 w lp pt 6 ps 1.25 lw 1 lc rgb "black"     t 'Error with reference solution, {\delta}/r=0.05, dt=1e-2, cmax=1e-2', \
     'gap-50-dtmax-1e-3-L0-256-cmax-1e-2-convergence.dat' u 2:5 w lp pt 3 ps 1.25 lw 1 lc rgb "blue"      t 'dt=1e-3, cmax=1e-2', \
     'gap-50-dtmax-1e-2-L0-256-cmax-1e-3-convergence.dat' u 2:5 w lp pt 8 ps 1.25 lw 1 lc rgb "red"       t 'dt=1e-2, cmax=1e-3', \
     'gap-50-dtmax-1e-3-L0-256-cmax-1e-3-convergence.dat' u 2:5 w lp pt 1 ps 1.25 lw 1 lc rgb "sea-green" t 'dt=1e-3, cmax=1e-3'
    Evolution of the relative error for the normal force F_x with the reference solution (script)

    Evolution of the relative error for the normal force F_x with the reference solution (script)

    plot 'gap-50-dtmax-1e-2-L0-256-cmax-1e-2-convergence.dat' u 2:6 w lp pt 6 ps 1.25 lw 1 lc rgb "black"     t 'Error with Brenner, 1961, {\delta}/r=0.05, dt=1e-2, cmax=1e-2', \
     'gap-50-dtmax-1e-3-L0-256-cmax-1e-2-convergence.dat' u 2:6 w lp pt 3 ps 1.25 lw 1 lc rgb "blue"      t 'dt=1e-3, cmax=1e-2', \
     'gap-50-dtmax-1e-2-L0-256-cmax-1e-3-convergence.dat' u 2:6 w lp pt 8 ps 1.25 lw 1 lc rgb "red"       t 'dt=1e-2, cmax=1e-3', \
     'gap-50-dtmax-1e-3-L0-256-cmax-1e-3-convergence.dat' u 2:6 w lp pt 1 ps 1.25 lw 1 lc rgb "sea-green" t 'dt=1e-3, cmax=1e-3'
    Evolution of the relative error for the normal force F_x with analytic solution (script)

    Evolution of the relative error for the normal force F_x with analytic solution (script)

    References

    [Cooley1969]

    MDA Cooley and ME O’neill. On the slow motion generated in a viscous fluid by the approach of a sphere to a plane wall or stationary sphere. Mathematika, 16(1):37–49, 1969.
    [Brenner1961]

    H. Brenner. The slow motion of a sphere through a viscous fluid towards a plane surface. Chemical Engineering Science, 16:242–251, 1961.
    [Stokes1851]

    G.G. Stokes. On the effect of the internal friction of fluids on the motion of pendulums. 1851.
