Marangoni-induced translation due to a temperature gradient
- References

Marangoni-induced translation due to a temperature gradient

This reproduces the test case in section 3.4 of Al Saud et al., 2018 which should be consulted for more details.

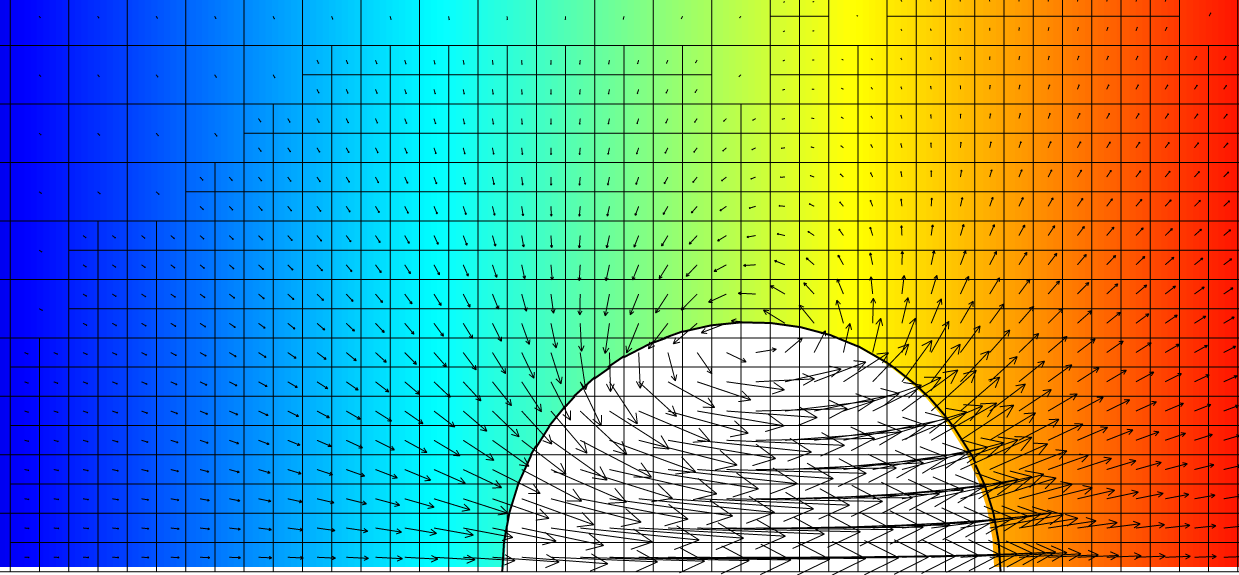

Final velocity field, interface, temperature and adaptive mesh

#include "axi.h"
#include "navier-stokes/centered.h"
#include "two-phase.h"
//vector chid[];
#include "marangoni.h"
#include "view.h"

int LEVEL = 8;

See section 3.4 of Al Saud et al., 2018. Note that we use a capillary number Ca 10 times larger than in Al Saud et al. to make the computation faster, but the results are good also for \text{Ca} = 0.066.

const double R = 0.5 [1], NablaT = 0.133, Mu = 0.1, Rho = 0.2 [0];
const double Re = 0.066, Ca = 0.66;
const double Gamma_T = 0.1 ; //Re*sq(Mu)/(Rho*sq(R)*NablaT);
const double Gamma_0 = 0.1; //(Gamma_T*R*NablaT)/Ca;
const double t0 = Mu/(Gamma_T*NablaT);
const double Cdrop = 1., Cbulk = 1.;
double U_drop;

We need a field to store the variable surface tension coefficient.

// scalar sigmaf[];
int counter2 = 0;
int main()
{

  size (15.*R);
  origin (- L0/2.);
  rho1 = rho2 = Rho;
  mu1 = mu2 = Mu;
  // d.sigmaf = sigmaf;

We reduce the tolerance on the Poisson and viscous solvers to improve the accuracy.

  TOLERANCE = 0.1e-4 [*];

  U_drop =  2./((2. + 3.*mu2/mu1)*(2. + Cdrop/Cbulk))*Gamma_T*R*NablaT/mu1;

  for (LEVEL = 7; LEVEL <= 9; LEVEL++) {
    N = 1 << LEVEL;
    counter2 = 0;
    run();
  }
}

We initialize the signed distance d and the surface tension gradient.

double temp_0 = 0;
scalar temp[];
event init (t = 0)
{
  fraction(f,sqrt (sq(x) + sq(y)) - R);

  foreach() {
    // d[] = sqrt (sq(x) + sq(y)) - R;
    temp[] = temp_0 + NablaT*x;

    sigmaf[] = Gamma_0 + Gamma_T*(temp_0 - temp[]);
  }
  boundary({sigmaf});
}

A utility function to check the convergence of the multigrid solvers.

void mg_print (mgstats mg)
{
  if (mg.i > 0 && mg.resa > 0.)
    fprintf (stdout, "%d %g %g %g %d ", mg.i, mg.resb, mg.resa,
	     mg.resb > 0 ? exp (log (mg.resb/mg.resa)/mg.i) : 0.,
	     mg.nrelax);
}

We log the position of the center of mass of the bubble, its velocity and volume as well as convergence statistics for the multigrid solvers.

double u_drop = 0.;

event logfile (i += 10)
{
  double xb = 0., vb = 0., sb = 0.;
  static double xb0 = 0., previous = 0.;
  if (t == 0.)
    previous = 0.;
  foreach(reduction(+:xb) reduction(+:vb) reduction(+:sb)) {
    double dv = (1. - f[])*dv();
    vb += u.x[]*dv;
    xb += x*dv;
    sb += dv;
  }

variable ‘sb0’ set but not used [-Wunused-but-set-variable]

  static double sb0 = 0.;
  if (i == 0) {
    sb0 = sb;
    // fprintf (filename, "\nt dsb xb vb/U_drop ta u_drop/U_drop dt perf.t perf.speed\n");
  }
  char filename[200];
  sprintf(filename, "young-%d.dat",(1 << grid->maxdepth));
	static FILE * fileptr2 = fopen(filename,"w");

  u_drop = t > previous ? (xb/sb - xb0)/(t - previous) : 0.;
  fprintf (fileptr2, "%g %g\n", (t + previous)/2./t0, u_drop/U_drop); fflush(fileptr2);
  //  fprintf (stdout, "%g %g\n", (t + previous)/2./t0, u_drop/U_drop); fflush(stdout);

  xb0 = xb/sb, previous = t;
}

event graphics (t=0; t += 0.03*t0; t <= 3.*t0)
// event graphics (i=0;i+=1;i < 10)
{
   double U = - Gamma_T*R*NablaT/Mu;
   fprintf (stderr, "%d %g %g\n", N/16, u_drop/U, U_drop/U);
   if (LEVEL == 7) {
     view (fov = 30, near = 0.01, far = 1000,
 	  tx = 0.009, ty = -0.076, tz = -0.291,
 	  width = 1239, height = 575);
     draw_vof (c = "f", filled = - 1, fc = {1,1,1});
     draw_vof (c = "f", lw = 2);
     squares (color = "temp", spread = 0.8, linear = true);
     vectors (u = "u", scale = 1);
     cells ();
     save ("fields.png");
   }
     counter2++;
    printf("\n %d %g %g %g",i,dt,t,t0); fflush(stdout);

}


event adapt (i++) {
  adapt_wavelet ({f,u}, (double[]){1e-2, 1e-5, 1e-5}, LEVEL);

}


import numpy as np
import matplotlib.pyplot as plt
plt.rcParams.update({'font.size': 12})
import matplotlib.ticker as mticker


plt.figure()


ts128, us128 = np.loadtxt('young-128.dat',delimiter=' ',unpack=True)
ts256, us256 = np.loadtxt('young-256.dat',delimiter=' ',unpack=True)
ts512, us512 = np.loadtxt('young-512.dat',delimiter=' ',unpack=True)

sts512, sus512 = np.loadtxt('../stephane-512.dat',delimiter=' ',unpack=True)

anexp = np.ones(len(ts128));
plt.plot(sts512[1:-1:20],sus512[1:-1:20],'yo',label='Al. Saoud et. al. (2018) $1/32 R_0$');


plt.plot(ts128[1:-1:2],us128[1:-1:2],'bx',label='$1/8 R_0$');
plt.plot(ts256[1:-1:20],us256[1:-1:20],'gx',label='$1/16 R_0$');
plt.plot(ts512[1:-1:20],us512[1:-1:20],'kx',label='$1/32 R_0$');

plt.plot(ts128,anexp,'r',label='Young et. al. (1959)');



#plt.ylim(0,1.2)
#plt.xlim(0,3.5)

plt.legend();
plt.xlabel(r'$t\;\nabla T/\Gamma_T$')
plt.ylabel(r'$U(t)/U_{drop}$')
plt.tight_layout()

plt.savefig('youngetal.svg')

References

[alsaud2018]

Moataz O. Abu-Al-Saud, Stéphane Popinet, and Hamdi A. Tchelepi. A conservative and well-balanced surface tension model. Journal of Computational Physics, 371:896–913, February 2018. [ DOI | http | .pdf ]
