    Expansion of circle

    The uniformly distributed surfactant initially redistributes as the circle expands for a given radial velocity. Stone, 1990 and Atasi et. al., 2018

    #include "navier-stokes/centered.h"
    #include "two-phase.h"
    #include "surfactant-transport.h"
    #include "view.h"


    double R0 = 0.2;
    double K = 1.;
    double Pe = 16.;
    int LEVEL = 6;
    int main (int argc, char * argv[])
    {

    The domain is a square box centered on the origin and of length L0=1

      origin (-L0/2., -L0/2.);

       //Redistance at each comp step
      reinit_skip_steps = 1;
      //If redistancing not done every step then use transport equation for phase-field
      advect_diff_phase_field = 1;
      D_s = sq(2.*R0)*K/Pe;
      // Iterate over 3 resolutions
      for (LEVEL = 5; LEVEL <= 7; LEVEL++) {
        N = 1 << LEVEL;
        counter = 0;
        run();
      }

    }

    We initialize a circle

    event init (i = 0)
    {
         refine( (sq(0.3)- pow(x,2) - pow(y,2)) > 0 && level < LEVEL);

        fraction(f, -(sq(0.2)- pow(x,2) - pow(y,2)) );
        event ("properties2");

     // Initialize surfactant
      foreach(){
      //  d2[] = (0.2) - sqrt(pow(x,2) + pow(y,2)) ;
      //  pfield[] = 0.5*(1. - tanh((d2[])/2./EPSILON));
      //  pfield[] = clamp(pfield[], 0., 1.);
        double deltas = (pfield[]*(1. - pfield[]))/EPSILON;
        double gamma0 = 1.;
        c1[] = gamma0*deltas;
      }

      if (grid->maxdepth == 7){
        //  view (fov = 30, near = 0.01, far = 1000,
    	  // tx = 0.009, ty = -0.076, tz = -0.291,
    	  // width = 1239, height = 575);
        draw_vof (c = "f", lw = 2);
        squares (color = "c1", spread = -1, linear = true);
        vectors (u = "u", scale = 1);

        save ("fields-initial.png");
      }

    }

    // Radial Velocity
    event stability (i++) {

    	trash ({u,uf});

    	foreach_face(y) uf.x[] = K*(sqrt(x*x + y*y))*cos(atan2(y,x));
    	foreach_face(x) uf.y[] = K*(sqrt(x*x + y*y))*sin(atan2(y,x));

    	foreach(){
    		u.x[] = K*(sqrt(x*x + y*y))*cos(atan2(y,x));
    		u.y[] = K*(sqrt(x*x + y*y))*sin(atan2(y,x));
    	}

    }

    /*
    event adapt (i++) {

    	scalar pfield2[];
    	foreach(){
         pfield2[] = 0.5*(1. - tanh((d2[])/4./EPSILON));
         //c2[] = clamp(pfield[], 0., 1.);
     }

     double uxemax = 0.1*statsf(u.x).max;
     double uyemax = 0.1*statsf(u.y).max;
    // double uzemax = 0.1*statsf(u.z).max;
     double c1emax = 0.001*statsf(c1).max;
     double pfemax = 0.001*statsf(pfield).max;
     double pf2emax = 0.001*statsf(pfield2).max;
     double d2emax = 0.1*statsf(d2).max;

      adapt_wavelet ({c1,pfield2}, (double[]){c1emax,pf2emax}, LEVEL);
    //  printf("\n%d %g",i,t); fflush(stdout);
    }
    */

    int count = 0;
    // event logfile(i += 1){
    event logfile(t = 0; t += 0.01; t <= 0.7){
    double cnet = 0.; //net surfactant
    scalar deltas[];
      foreach(){
       // pfield[] = 0.5*(1. - tanh((d2[])/2./EPSILON));
       // pfield[] = clamp(pfield[], 0., 1.);
        deltas[] = pfield[]*(1. - pfield[])/EPSILON;
        cnet += c1[]*dv();
        gamma2[] = c1[]*4.*EPSILON;
      }
      char filename[200];
      sprintf(filename,"expanding-circle-test-%d",(1 << grid->maxdepth));
      static FILE * fp2 = fopen(filename,"w");
      //double theta = M_PI/2.;
      fprintf (fp2, "%.17g %.17g %.17g\n", t, statsf(c1).max/statsf(deltas).max, cnet);
      fflush (fp2);


      count++;

    }

    event end( t = 0.7){

      if (grid->maxdepth == 7){
        //  view (fov = 30, near = 0.01, far = 1000,
    	  // tx = 0.009, ty = -0.076, tz = -0.291,
    	  // width = 1239, height = 575);
        draw_vof (c = "f", lw = 2);
        squares (color = "gamma2", spread = -1., min = 0, max = 1, linear = true);
        // vectors (u = "u", scale = 1);

        save ("fields-end.png");
      }
      // save();
    }

    Surfactant evolution over the circle

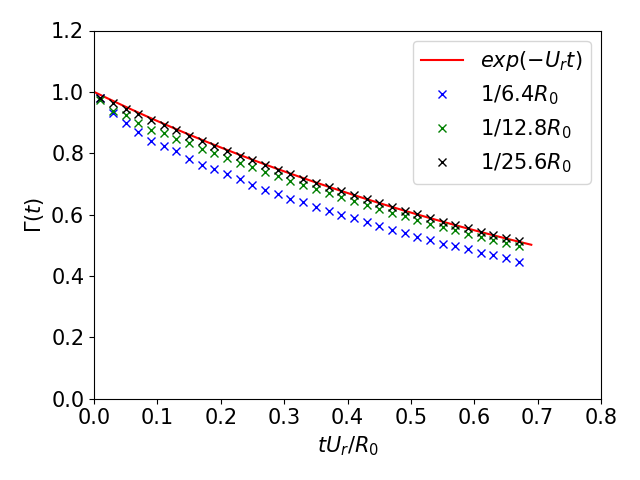

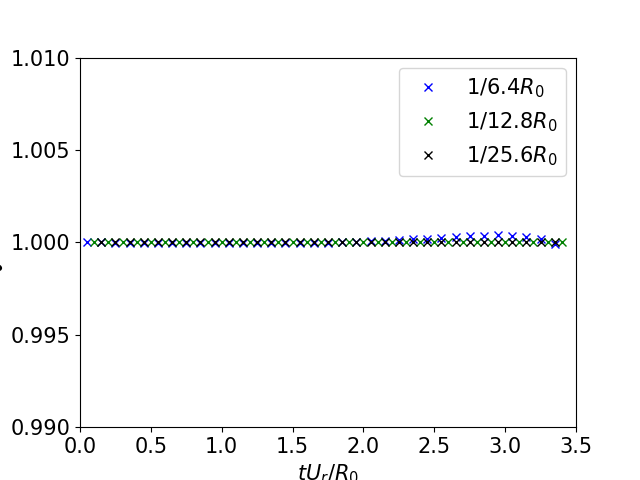

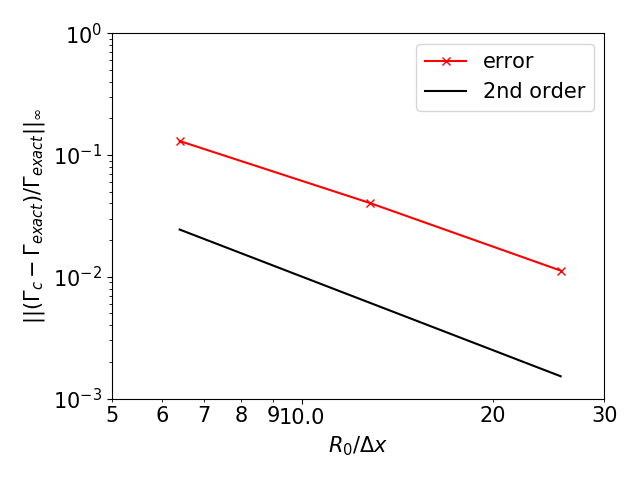

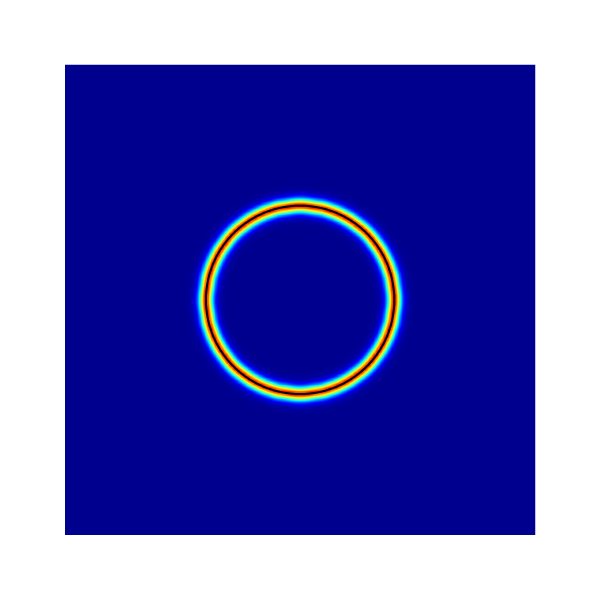

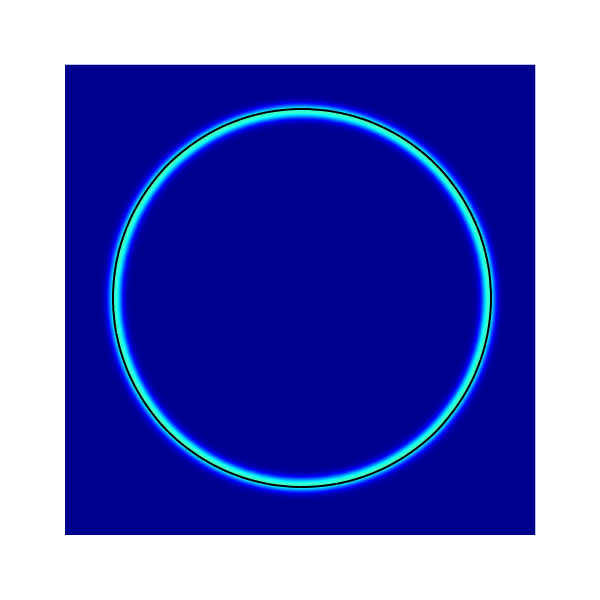

    Surfactant concentration and Interface at t = 0 Surfactant concentration and Interface at t = 0.8 Time evolution of Surfactant concentration Time evolution of Surfactant concentration Time evolution of Surfactant concentration

    import numpy as np
    import matplotlib.pyplot as plt
    plt.rcParams.update({'font.size': 15})
    import matplotlib.ticker as mticker


    plt.figure()


    ts32, gammat32,cnet32 = np.loadtxt('expanding-circle-test-32',delimiter=' ',unpack=True)
    ts64, gammat64,cnet64 = np.loadtxt('expanding-circle-test-64',delimiter=' ',unpack=True)
    ts128, gammat128,cnet128 = np.loadtxt('expanding-circle-test-128',delimiter=' ',unpack=True)

    anexp = np.exp(-ts128);

    plt.plot(ts128,anexp,'r',label='$exp(-U_r t)$');

    plt.plot(ts32[1:-1:2],gammat32[1:-1:2],'bx',label='$1/6.4 R_0$');

    plt.plot(ts64[1:-1:2],gammat64[1:-1:2],'gx',label='$1/12.8 R_0$');

    plt.plot(ts128[1:-1:2],gammat128[1:-1:2],'kx',label='$1/25.6 R_0$');


    plt.ylim(0,1.2)
    plt.xlim(0,0.8)

    plt.legend();
    plt.xlabel(r'$tU_r/R_0$')
    plt.ylabel(r'$\Gamma(t)$')
    plt.tight_layout()

    plt.savefig('expanding_circle_test.png')
    plt.figure()


    plt.plot(ts32[1:-1:2]*5,cnet32[1:-1:2]/cnet32[1],'bx',label='$1/6.4 R_0$');

    plt.plot(ts64[2:-1:2]*5,cnet64[2:-1:2]/cnet64[1],'gx',label='$1/12.8 R_0$');

    plt.plot(ts128[3:-1:2]*5,cnet128[3:-1:2]/cnet128[1],'kx',label='$1/25.6 R_0$');
    plt.legend();

    plt.ylim(0.99,1.01)
    plt.xlim(0,3.5)
    plt.xlabel(r'$tU_r/R_0$')
    plt.ylabel(r'$\int c\; dv$')

    plt.savefig('expanding_circle_test_mc.png')
    plt.figure()

    error32 = np.max(np.abs((anexp - gammat32) / anexp))
    error64 = np.max(np.abs((anexp - gammat64) / anexp))
    error128 = np.max(np.abs((anexp - gammat128) / anexp))
    dx = [6.4, 12.8, 25.6]
    erv = [error32, error64, error128]
    ax = plt.loglog(dx, erv, 'r-x')
    order = -2;
    yl =  [x ** order for x in dx]
    ylp = [x * 1  for x in yl]

    plt.loglog(dx, ylp, 'k')
    plt.axis([5, 30, 1e-3, 1])
    plt.legend(['error', '2nd order'])
    plt.xlabel('$R_0/\Delta x$',fontsize = 15)

    ax = plt.gca()

    ax.xaxis.set_major_formatter(mticker.ScalarFormatter())
    ax.xaxis.get_major_formatter().set_scientific(False)
    ax.xaxis.get_major_formatter().set_useOffset(False)

    ax.xaxis.set_minor_formatter(mticker.ScalarFormatter())
    ax.xaxis.get_minor_formatter().set_scientific(False)
    ax.xaxis.get_minor_formatter().set_useOffset(False)



    plt.ylabel('$||(\Gamma_c - \Gamma_{exact})/\Gamma_{exact}||_{\infty}$',fontsize=15)
    plt.tight_layout()

    plt.savefig('expanding_circle_test_order.png')
    plt.figure()
    (script)
